HE 100 A - Section Properties

The HE 100 A is a European wide-flange beam (HE) with a mass of 16.7 kg/m, an overall depth of 96 mm and width of 100 mm. It has a cross-sectional area of 21.2 cm², a second moment of area Iᵧ of 349 cm⁴, a plastic modulus Wₚₗ,ᵧ of 83 cm³, to EN 10365 · Continental Steel (SCI P363 Blue Book).

Mass

16.7 kg/m

Depth

96 mm

Width

100 mm

Area

21.2 cm²

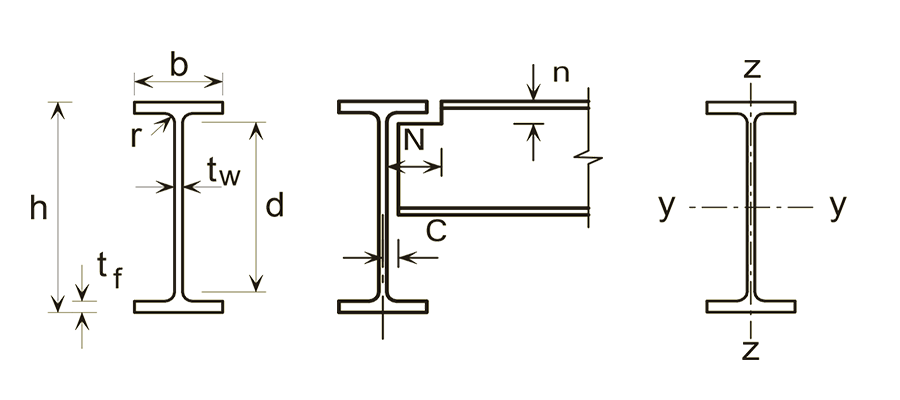

PropertiesCapacity

mass (kg/m)16.7

h (mm)96

b (mm)100

t_w (mm)5

t_f (mm)8

I_y (cm⁴)349

I_z (cm⁴)134

i_y (cm)4.06

i_z (cm)2.51

W_el,y (cm³)72.8

W_el,z (cm³)27

W_pl,y (cm³)83

W_pl,z (cm³)41.1

u4.363

X9.95

I_w (dm⁶)0.00258

I_t (cm⁴)5.28

A (cm²)21.2

SA/m (m²/m)0.561
