2×PFC 200×75×23 Laced - Section Properties

The 2×PFC 200×75×23 Laced is a parallel flange channel with a mass of 46.9 kg/m, an overall depth of 0 mm and width of 0 mm. It has a cross-sectional area of 59.7 cm², a second moment of area Iᵧ of 3930 cm⁴, a plastic modulus Wₚₗ,ᵧ of 464 cm³, to BS EN 1993-1-1:2005 / BS 4-1:2005 (SCI P363 Blue Book).

Mass
46.9 kg/m
Area
59.7 cm²
🔍 Open the full Steel Catalogue →Run EC3 capacity checks on 2×PFC 200×75×23 Laced →📖 Design theory📐 Worked example

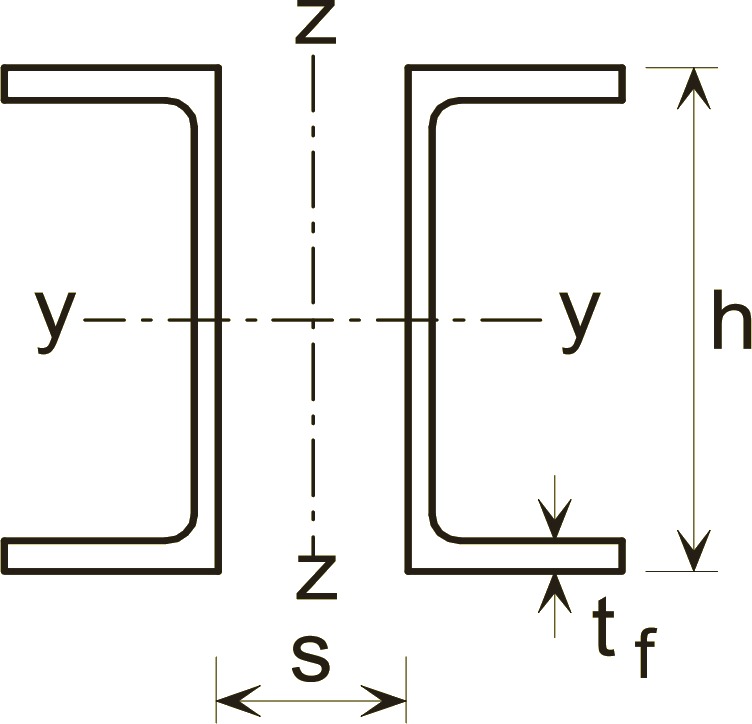

2×PFC 200×75×23 Laced section profile
mass (kg/m)46.9
s (mm)90
Iy (cm⁴)3930
Iz (cm⁴)3930
iy (cm)8.11
iz (cm)8.11
Wel,y (cm³)393
Wel,z (cm³)306
Wpl,y (cm³)464
Wpl,z (cm³)452
A (cm²)59.7
