UBP 254×254×71 - Section Properties

The UBP 254×254×71 is a universal bearing pile with a mass of 71 kg/m, an overall depth of 249.7 mm and width of 258 mm. It has a cross-sectional area of 90.4 cm², a second moment of area Iᵧ of 10100 cm⁴, a plastic modulus Wₚₗ,ᵧ of 904 cm³, to BS EN 10365:2017 (SCI P363 Blue Book).

Mass

71 kg/m

Depth

249.7 mm

Width

258 mm

Area

90.4 cm²

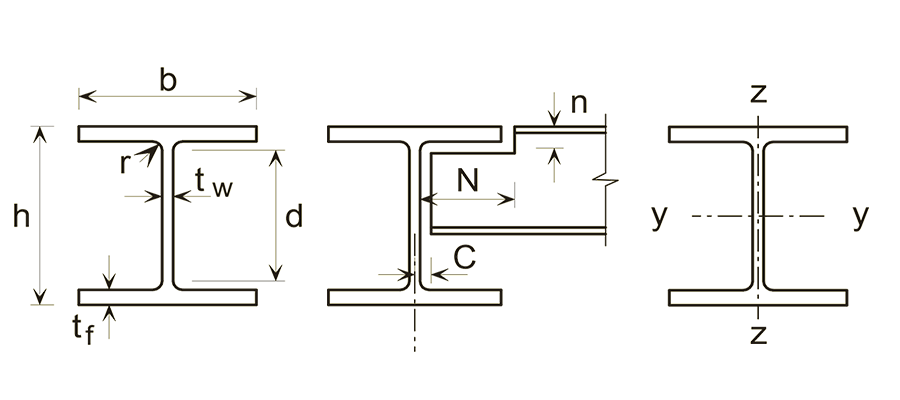

PropertiesCapacity

mass (kg/m)71

h (mm)249.7

b (mm)258

t_w (mm)12

t_f (mm)12

I_y (cm⁴)10100

I_z (cm⁴)3440

i_y (cm)10.6

i_z (cm)6.17

W_el,y (cm³)807

W_el,z (cm³)267

W_pl,y (cm³)904

W_pl,z (cm³)409

u0.826

X18.4

I_w (dm⁶)0.486

I_t (cm⁴)48.4

A (cm²)90.4

SA/m (m²/m)1.49

SA/t (m²/t)20.9
